29.4V 2A E-bike Portable 3 Pin Battery Charger 157mm x 72mm x 45mm

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : guangzhou

Brand Name : TAC

Certification : UL,ROHS

Model Number : PCGI0115

MOQ : 1000pcs

Price : Price Negotiable

Packaging Details : 1pcs/box

Delivery Time : 14Days

Payment Terms : TT, LC, Paypal, etc

Supply Ability : 100000Piece/days

Contact Now

29.4V 2A E-bike Portable 3 Pin Battery Charger 157mm x 72mm x 45mm

Quick Detail:

Specification:

Input characteristics

Serial number	Conditions	Specifications

1.1 Rated input voltage	Continuously	110/220V

1.2 Input voltage range	Continuously	100Vac -240Vac

1.3 Input frequency range	Continuously	47Hz -63Hz

1.4 Efficiency	Vin 110Vac/Vout 1.8A Vin 220Vac/Vout 1.8A	≥80%

1.5 No-load power	100/240Vac/Out 0A	≤3W


1.6 No-load input current	100/240Vac/Out 0A	≤ 65 mA


1.7 Power Factor	100/240Vac/Out 1.8A	≥0.45


2.:Output and charge characteristics, functional lights instructions

Serial number	Conditions	Specifications

2.1 Rated output voltage	(4.2±0.02)XN V	29.4V

2.2 Output current	at constant voltage mode	2A±0.2A

2.3 Output Voltage Range	at the output end of DC cable	29.2V≤Vo≤29.6V

2.4 Output voltage Ripple and Noise:(0.1uF Ceramic Cap and 50 V 10uF Aluminum Cap.Paralleled between the end of output cable,BW=20MHz)	Vin 110Vac/Vout 1.8A Vin 220Vac/Vout 1.8A	≤300mVp-p

24V(29.4V) 2A Portable Battery Charger for E-bike

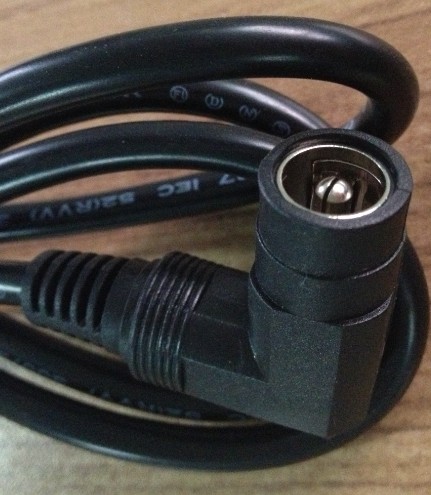

Pictures 1,2 : 24V(29.4V) 2A Portable Battery Charger for E-bike with 1-pin

29.4V 2A E-bike Portable 3 Pin Battery Charger 157mm x 72mm x 45mm

Pictures 3 .4 : 24V(29.4V) 2A Portable Battery Charger for E-bike with 3-pin XLR and UK plug.

Application:

Product Tags:

rechargeable battery chargers
